Explorer Post 1010
Engineering Exploring Program
Launch - February 19, 2018

Project Home

On Monday, February 19, members from both teams traveled to the Walkersville launch site for test flights. The day was cloudy, but with little wind. Toward the end, we had a little mist. We completed seven test flights. We used the our launch rail, straight up.

Temperature=44F, Pressure=30.09inHg, Wind=3-8mph, Altitude=307ft

Objectives

  • Complete the tests we planned for February 10 at Great Meadow that were cut short for rain..
  • Test team 4053 rocket with weight around 500g.
  • Test team 4053 rocket with 20" chute.
  • Test team 4054 rocket with F24-7W.

Lessons

  • Red rocket (4053) and the F39-6T were a little short with less than 500g.
  • The 240inch round chute took too long to land. Back to the 24inch X chute.
  • The ejection time while a little early seemed to be about right.
  • Team 4054 tried three flights with an F24-7W. The ejection was late, and it came down too soon. The igniter sputtered, even with the First Fire Jr. They may go to F39-6Ts.

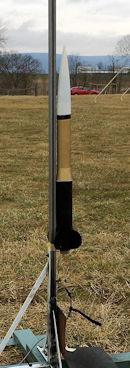

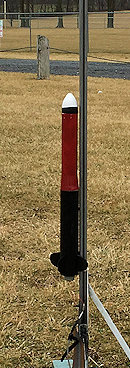

   Red Rocket   Gold Rocket

Launches

Team Rocket Flight Motor Weight Alt Recovery Altitude Time Comment
4053 Red (video) 1 F39-6T 509g 4 24"X 749ft 29sec tangled chutes
4053 Red (video) 2 F39-6T 500g 4 20" 786ft 58sec too much chute
4053 Red (video) 3 F39-6T 498g 4 24"X 783ft 42sec nice flight, score 17
4053 Red (video) 4 F39-6T 483g 4 24"X 783ft 43sec nice flight, score 17
4054 Gold (video) 1 F24-7W 488g 11 2-15" 727ft 32sec late deployment
4054 Gold (video) 2 F24-7W 469g 11 2-15" 754ft 33sec late deployment
4054 Gold (video) 3 F24-7W 470g 11 2-15" 683ft 29sec late deployment

Altimeter Data (Excel format)

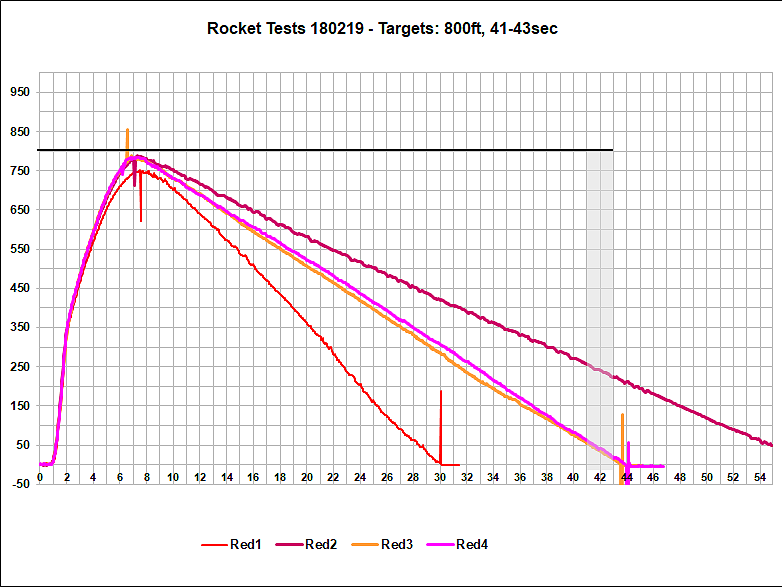

Flight Data Chart Red Rocket

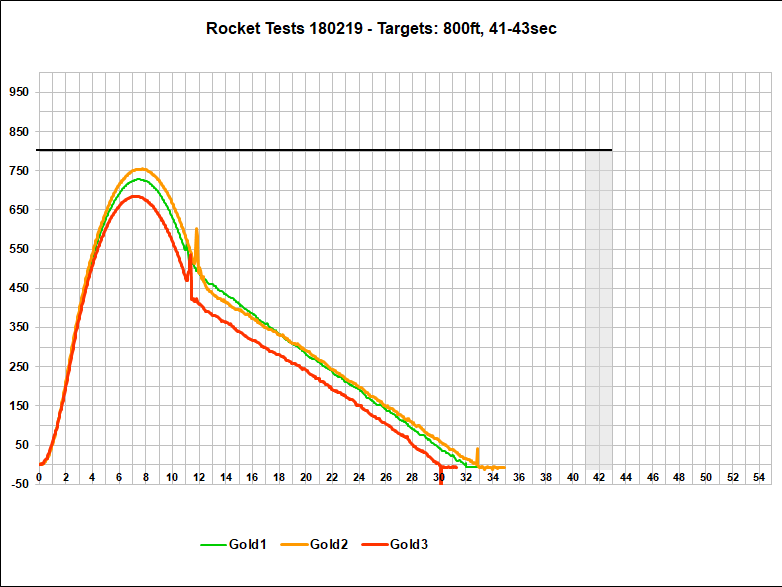

Flight Data Gold Rocket

Pictures

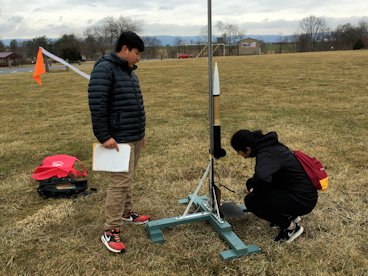

 Teams                                                                                       Loading
 Teams    Loading

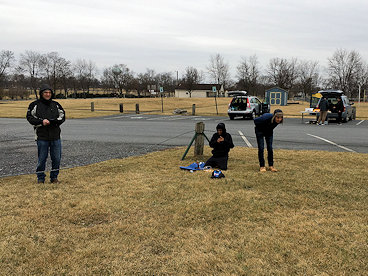

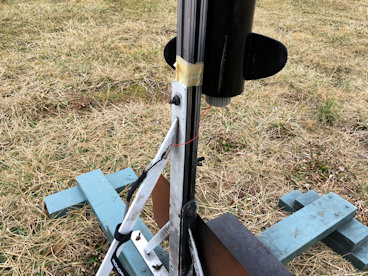

 Igniter Connected                                                                        Launching
 Igniter Connected    Launching
