Explorer Post 1010
Lockheed Martin Exploring Program
Launch - January 16, 2010

Twelve members traveled to the Maryland launch site on Saturday, January 16, to test various streamer recovery techniques.  It was a cold partly cloudy day with wind about 8mph.  We used both launch rails and had seven TARC launches with four different boosters. We recovered all our rockets and only broke one egg.  We improved our streamer descent rates.  Another good day, considering all the bad weather we have been having.

Bob Ekman flew a special light weight (380g) rocket to see if an E30 will reach 825ft.  He also tested two different altimeters (the PerfectFlite Alt15K and the Adept A1-TA) to see if there is any difference in the altitude recorded.  The two altimeters recorded 849 (altimeter C) and 851 (altimeter 1) feet respectively.

Ted Makowski flew his "bat" rocket again, but with a C6-4 motor.  It went twice as high as with a B6-4 motor - up to 220ft.

Objectives

  • Try several new techniques to slow the descent.
  • Test iron folds in the streamers, also sewing lines across the streamers.
  • Use a yoke to separate the streamers.
  • Refine our motor selections.
  • Test a rocket under 380g with a E30 motor.
  • Compare the PerfectFlite Alt15K and the Adept A1-TA altimeters.
  • Teach more members how to assemble F24-4W motors.
  • Learn more about the weight to motor ratios.

Lessons

  • We did better with the igniters - no failed igniters.  We are looking into buying Quest Q2G2 igniters.
  • The streamer separator yoke seemed to work well, but needs to be made "legal".
  • Team 8186 still had the best descent rate, but the other teams are getting closer.
  • We need to use some paper insertion between the streamers so they don't get tangled.
  • The F24-4W seems to be our best motor for 440g rockets, with the 4sec ejection charge just before apogee.
  • The F32-4T worked for over 600g, but the ejection time may be inconsistent.  They may want to try an F39.
  • It is uncertain if the ironing and sewing stripes helped with slowing the descent.  We need another test.
  • Using more chute protectors to add weight only caused them to get stuck in the tube.
  • We need to test batteries with a meter to be they are more than 11.5v.

Suggested Tasks

  • Team 8186:  You had a good score, but it could be better.  One of the streamers got stuck folded and may have robbed you of a great score.  You need to work on deploying the streamers completely.  You should choke the x-chute a bit or go back to a small streamer.

  • Team 8188:  The yoke seemed to work fine, but you still need more drag.  Try making the yoke a little longer.  You need to rework the yoke to be legal, and rebuild you altimeter holder.

  • Team 8189:  Adding the chute protectors to the booster just caused them to get stuck in the tube.  You need to try something else.  You may want to try ironing your streamers.  You need to remake your altimeter holder, perhaps put the egg under the altimeter, and connect the second streamer to the nose cone.  You may want to try fins on the cargo unit.

  • Team 8296:  You seem to be narrowing in on 615g for the F32-4T. You may want to move the egg under the altimeter to create a better separation of the streamers.  You may want to try ironing your streamers.  You may want to try an F39-xT.  If you stay with the F32, we need to order more.

  • Bob and Ted didn't get any data on their rockets because of issues with the altimeters, so they went out and re-flew their rockets the next week.  Here are their results.

Launches

Team Rocket Engine Cargo Cargo Recovery Booster Recovery Weight Results Comments
8186 Black
test 1
F24-4W egg,
altimeter G
2-7x70  streamers sticks, ironed 10' Xchute 433g 817ft, 38sec
(video)
Nice flight, one streamer hung up - Score 18
8188 Orange
test 1
E30-4T egg,
altimeter H
2-7x70  streamers sticks, ironed, yoke 12" chute w/hole 404g 696ft, 29sec
(video)
Under powered motor, streamers/yoke deployed nice
8188 Orange
test 2
F24-4W egg,
altimeter H
2-7x70  streamers sticks, ironed, yoke 12' chute w/hole 420g 903ft, 38sec
(video)
Nice flight, some wind cocking, streamers/yoke deployed nice
8189 Green
test 1
F24-4W egg,
altimeter
C
2-7x70  streamers with sticks 10' Xchute 442g 838ft, 35sec
(video)
Nice flight - Score 48
8189 Green
test 2
F24-7W egg,
altimeter
C
2-7x70  streamers with sticks 10' Xchute choked 442g 916ft, 26sec
(video)
Ejection charge way too late
8296 Blue
test 1
F32-4T egg,
altimeter F
2-7x70  streamers with sticks 6x60 streamer 622g 800ft, 33sec
(video)
Nice flight, streamers deployed nicely, egg broke
8296 Blue
test 2
F32-4T egg,
altimeter F
2-7x70  streamers with sticks 6x60 streamer 600g 883ft, 36sec
(video)
Nice flight, streamers deployed nicely

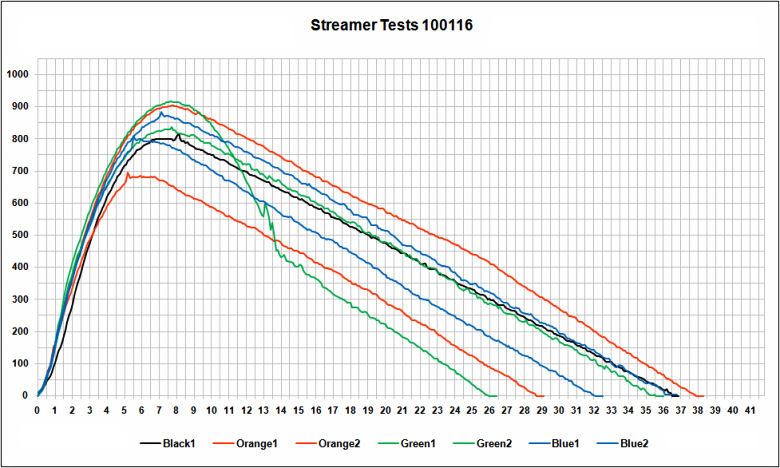

Altimeter Data (Excel format)

Pictures

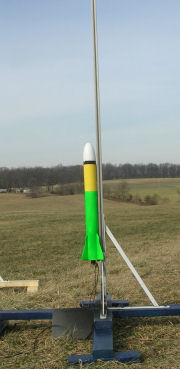

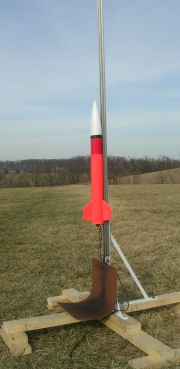

Team 8189                                 Team 8188

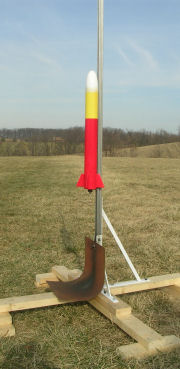

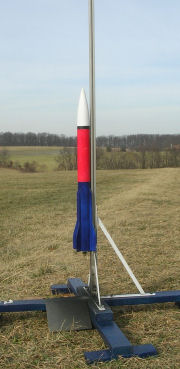

Special Test                              Team 8296

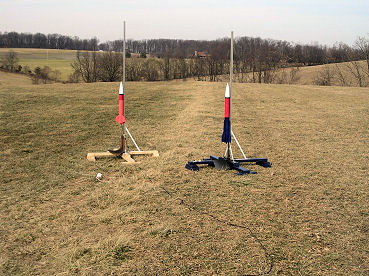

Launch site

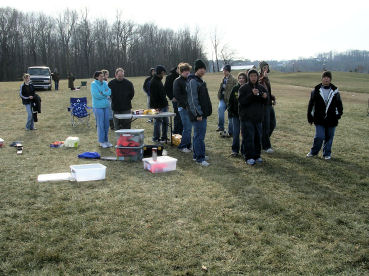

Launch preparation area
