Designs
Lunar Module

Project Home

This year we will use thin wall BT70 and BT80 rocket tubes for all our rockets. This will allow us to have inter-changeable parts - cargo units nose cones, and boosters. The altimeter and three eggs will be in a cargo unit and the nose cone. We will also constrain ourselves to 24mm motors of the F class. This will help use get some consistency in the motor selections.

OpenRocket
OpenRocket
To create the overall design and then simulate launches, we will use OpenRocket (http://openrocket.sourceforge.net/).


Here is a design from team 19-5181 (OpenRocket file, Parts Design). After flying with several different designs, all three teams have decided to use the basic design referred to as the "Pink Rocket".

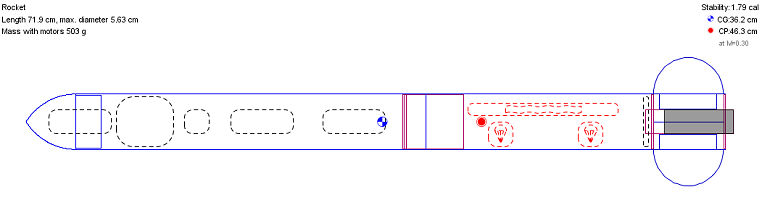

Design

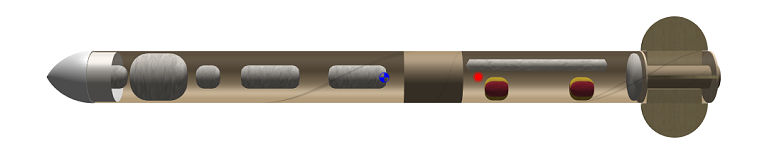

Design 3D

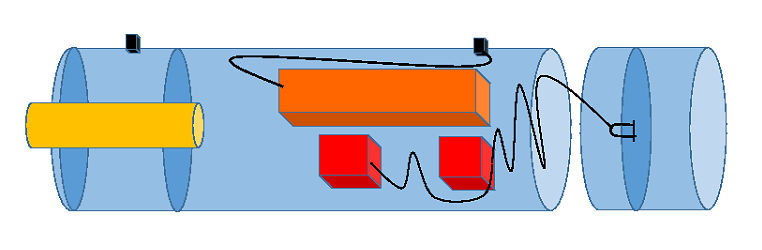

Design Inside Rocket
