Apollo Spacecraft  Explorer Post 1010
Engineering Exploring Program
Launch - March 30, 2019
Lunar Module

Project Home

On Saturday, March 30, a few members from all teams traveled to the Walkersville launch site for qualification flights. The day was clear with light wind. We used our launch rail at about 5% with the wind. We got off nine flights. Jonathan Rains and Daniel Roh were the NAR members who qualified the flights.

Results were again mixed. Team 5179 (Gold rocket) had a low first test flight, and reduced weight for the second flight (qualification #2). In that flight, their booster chute came off the booster and the flight was disqualified.

Team 5180 (Multicolor rocket) flew 4 times - two tests and two qualifications. The test flights were somewhat low, but the first qualification was fair with a score of 24. The second qualification flight was again low because it flew off at an angle. It also had a problems with the chutes fully deploying and the booster streamer never came out. It was a disqualification.

Team 5181 had the best day with  no disqualifications. The first test flight was low. The second flight (the second qualification flight) was a little high, but got a score of 16. The third flight,(third qualification flight) was very low and got a score of 64.

Temperature=55F, Pressure=29.70inHg?, Wind=5-10mph, Elevation=331ft

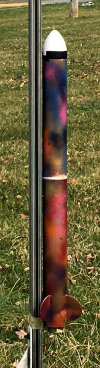

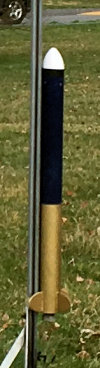

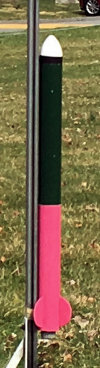

Gold Rocket  Multicolor Rocket  Pink Rocket

Objectives

  • Each team will fly one test flight and then one or two qualification flights.
  • Team 5180 switched out the booster chute for a small streamer.
  • Plan one more qualification outings before April 7.

Lessons

  • Team 5181's streamer worked but Jonathan indicated other NAR members might say it still came in too fast.
  • Team 5181 flights had a strange drag when the motor finished firing. We noticed this before, but it was very clear this time.
    Their Multicolor rocket had a loose fin, which may have been the cause.
  • Team 5179 and 5181 are done with qualification flights..
  • We should have done more to separate the chutes..

Launches

Team Rocket Flight Motor/Lot/Pack Weight Alt Recovery Altitude Time Comment
5179 Gold (video-9065) 1 F39-6 04091808 6 503 14 2-14"/10" 818 46sec Little low
5179 Gold (video-9081) 2 F39-6 04091808 6 492 14 2-14"/10" 853 46sec Tangled chutes, Q2=DQ
5180 Multi (video-9063) 1 F39-6 04091808 5 501 12 2-14" 2x30" 822 48sec Nice flight, low
5180 Multi (video-9076) 2 F39-6 04091808 5 487 12 2-14" 2x30" 825 49sec Nice flight, still low
5180 Multi (video-9082) 3 F39-6 04091808 ? 489 12 2-14" 2x30" 832 44.46sec Q1=24
5180 Multi (video-9088) 4 F39-6 04091808 ? 489? 12 2-14" 2x30" 815 29sec Streamer failed, Q2=DQ
5181 Pink (video-9070) 1 F39-6 04091808 7 503 13 2-14"/10" 824 39sec Nice flight, low
5181 Pink (video-9080) 2 F39-6 04091808 7 494 13 2-14"/10" 868 47.00sec Nice flight, Q2=16
5181 Pink (video-9085) 3 F39-6 04091808 7 498 13 2-14"/10" 805 39.66sec Strange flight, Q3=64.36

Altimeter Data (Excel format)

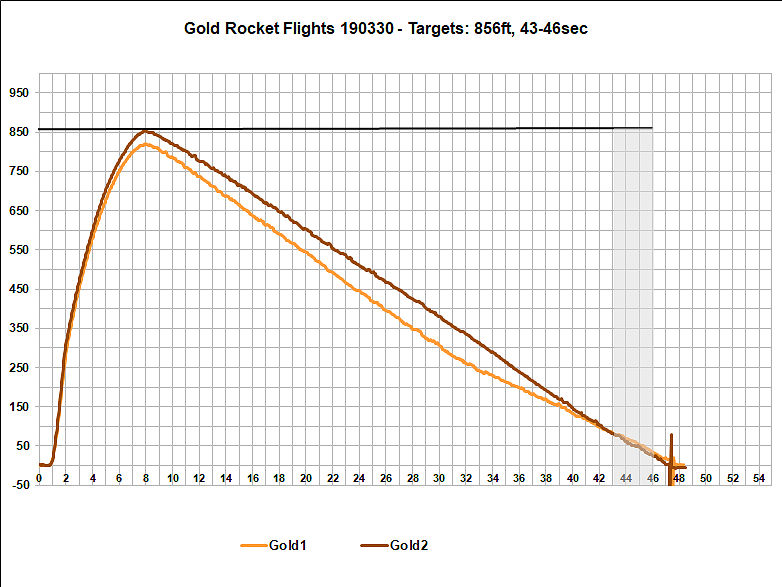

Flight Data Chart Gold Rocket

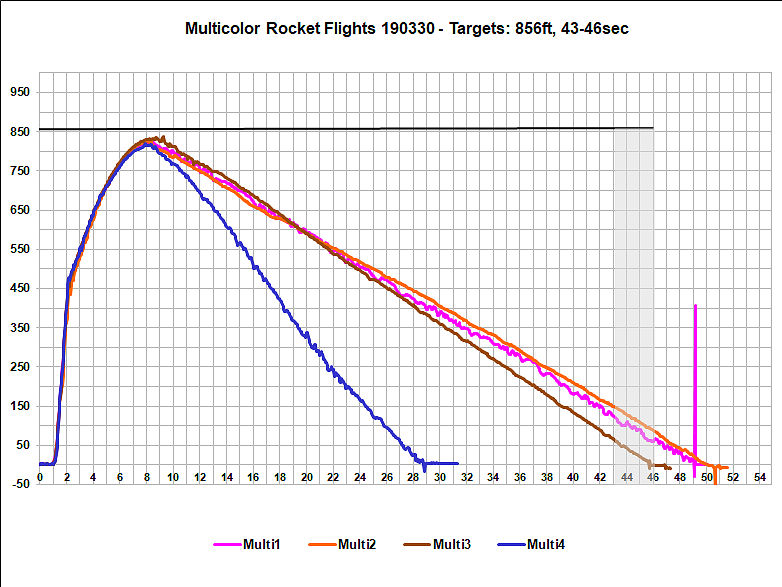

Flight Data Chart Multicolor Rocket

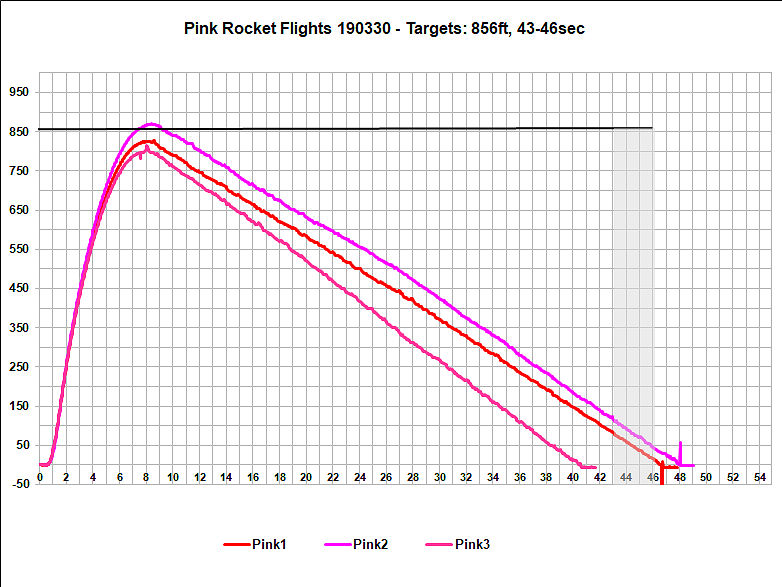

Flight Data Chart Pink Rocket

Pictures
 Preparing                                                                                 More Preparing

 Preparation    Preparation

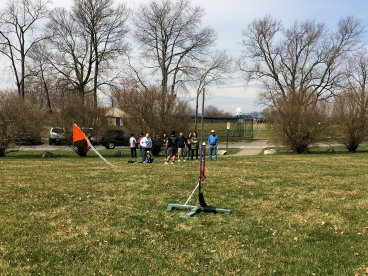

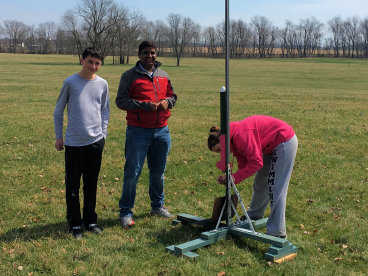

 Loading                                                                                      Launch Field
 Loading    Launch Site
