Saturn Explorer Post 1010
Engineering Exploring Program
Finals - May 12-13, 2017
Cassini Spacecraft

Project Home

On Sunday, April 2, members from both teams traveled to the Great Meadow Virginia launch site for qualification flights. This was the last day to qualify. The day was mostly sunny, around 60 degrees, with little wind. We got off 6 flights. We used the site's launch rails.

Objectives

  • One qualification flight for the Red/White/Blue rocket at 415g with an E20-7.
  • Two qualification flights for the New Red rocket at 315g with an E12-6.

Lessons

  • The red rocket performed nicely for the two test flights, and the final qualification flight. All E20's had the same lot number.
  • The new red rocket had issues, especially with deployment.
  • The last flight of the new red rocket went straight, but way to high with no obvious reason. All E12 motors had the same lot number.
  • Our use of the site's launch rail was acceptable because we always launched from the same rail and were able to keep it clean. Team 2662 did a little angle with the wind to get straighter flights.
  • On reflection, the E12-6 may have been a bad choice for team 2661.
  • We end the qualification flights with no eggs broken and no lost rockets.


Launches

Team Rocket Flight Motor Weight Alt Recovery Altitude Time Comment
2661 New (video) 1 E12-6 317g 11 12", 4x40" 703ft 38sec Low, into wind over cars
2661 New (video) 2 E12-6 315g 4 12", 4x40" 730ft 38sec Qualification 2 DQ
chute/streamer tangled
2661 New (video) 3 E12-6 314g 4 12", 4x40" 852ft 28sec Qualification 3 DQ
chute didn't deploy
2662 Red (video) 1 E20-7W 417g 10 14", 6x60" 715ft 37sec Low, into wind over cars
2662 Red (video) 2 E20-7W 418g 10 14", 6x60" 765ft 39sec Nice flight, angled tower
2662 Red (video) 3 E20-7W 416g 10 14", 6x60" 761ft 40.32sec Qualification 3, OK flight
Score 16.72

Altimeter Data (Excel format)

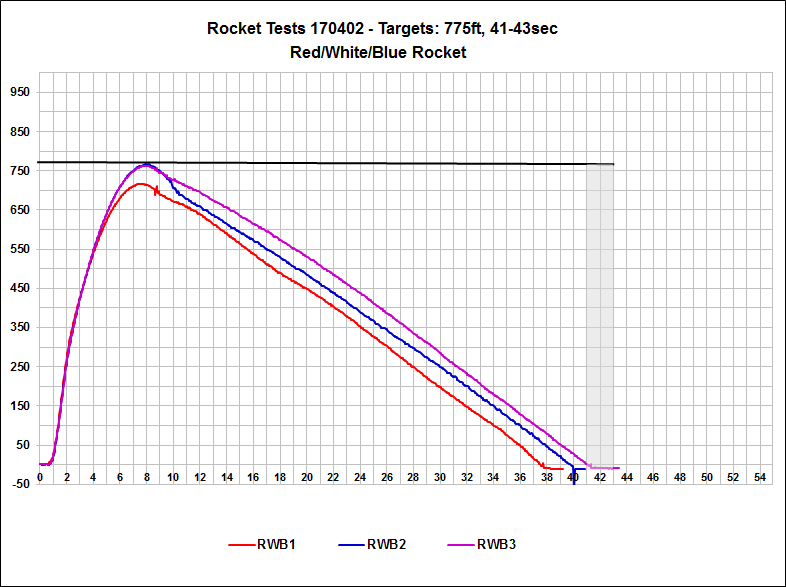

Altimeter Data Chart Red Rocket

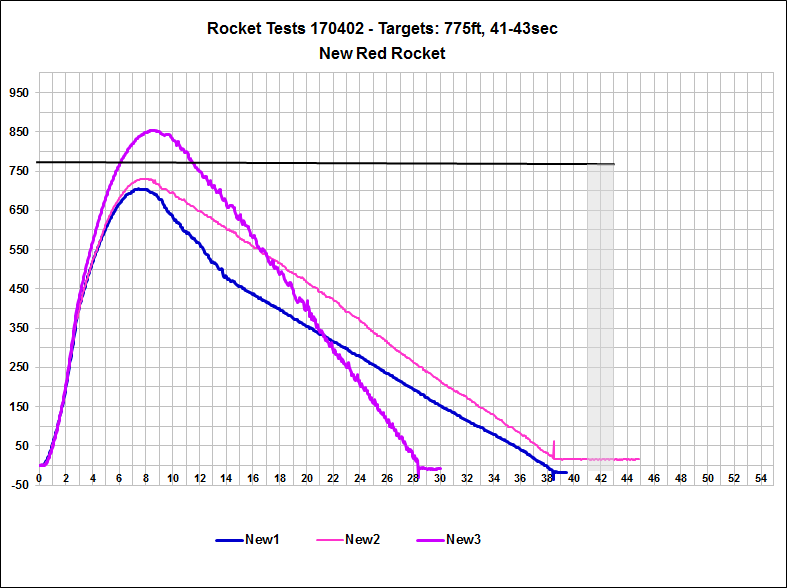

Altimeter Data Chart Pink Rocket

Pictures

 Team 2661                                                                                 Team 2662
  Team 2661   Team 2662

 Preparing                                                                                    Loading
 Preparing    Loading
