Pluto and Charon Explorer Post 1010
Engineering Exploring Program
Launch - March 12, 2016
New Horizon Spacecraft

Project Home

On Saturday, March 12, members from all teams traveled to the Great Meadow launch site for qualification flights. The day was cloudy with wind around 5mph. We used our 7ft launch rail. We conducted 9 flights.

Objectives

  • At least one qualification flight of all our team rockets.
  • Each team will start with one test fight to refine their weight.

Lessons

  • Only teams 1639 and 1640 had qualification launches. Team 1641 pink rocket had a fin loose and decided to wait.
  • We had no ignition issues, with eggs breaking or recovery of rockets.
  • Some of our launches had a wiggle as they left the launch tower and altitude was reduced. We think it may have been a cross wind. The wind changed direction during the day. When we reset the launch rail with the wind, it seemed to reduce the wiggle on the last Blue/Gold launch.
  • In using our launch rail next to a NOVAAR rail it caused some confusion with the launch managers and other teams. It got much better when we moved the rail number plate to the proper rail.
  • The scores were disappointing, but had some good elements. We will be ready to try again very soon.

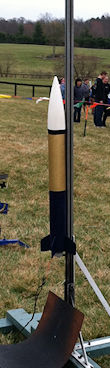

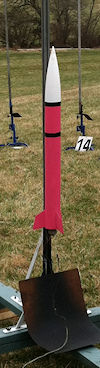

 Blue/Gold Rocket Pink Rocket

Launches

Team Rocket Flight Motor Weight Alt Recovery Altitude Time Comment

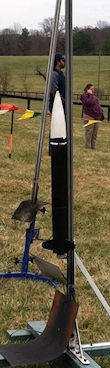

1639 Black (video) 1 F39-6T 488g 10 18", 12" 861ft 47sec nice flight
1639 Black (no video) 2 F39-6T 488g 10 18", 12" 826ft 42.60sec qual=29.6
1639 Black (video) 3 F39-6T 489g 10 18", 12" 780ft 42sec unexplained low, cross wind
1639 Black (video 4 F39-6T 489g 10 18", 12" 763ft 40sec unexplained low, cross wind
1640 Blue/Gold (video) 1 F44-8W 450g 1 18" 826ft 40sec curved flight, late deployment
1640 Blue/Gold (video) 2 F44-8W 451g 1 18"/3"spill 772ft 40sec low, cross wind
1640 Blue/Gold (video) 3 F44-8W 445g 1 18"/3"spill 853ft 29.63sec straight, chute tangle, qual=60.48
1641 Pink (video) 1 F44-8W 456g 9 15"-12" 878ft 44sec high, descent fast
1641 Pink (video) 2 F44-8W 466g 9 15"-12" 798ft 37sec low, cross wind, altimeter cut out

Altimeter Data (Excel format)

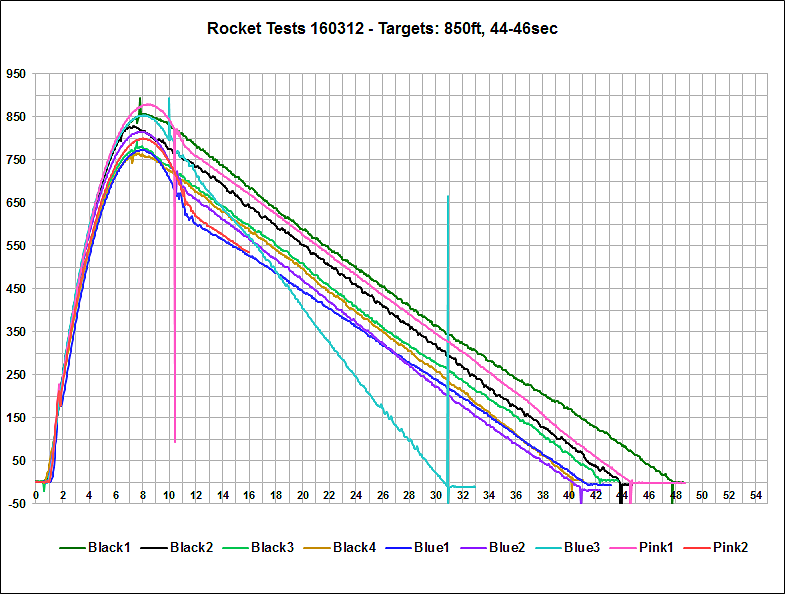

Altimeter Data Chart

Pictures

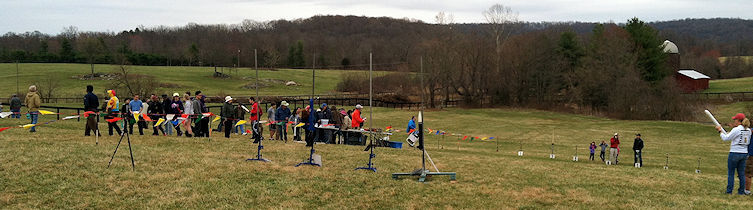

Great Meadow Launch Site

 Team 1639                                                                                  Team 1640
 Team 1639     Team 1640

 Team 1641                                                                                  Registration
 Team 1641     Registration

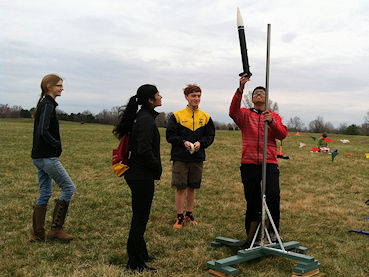

 Loading
 Loading

Altimeter Data per Rocket

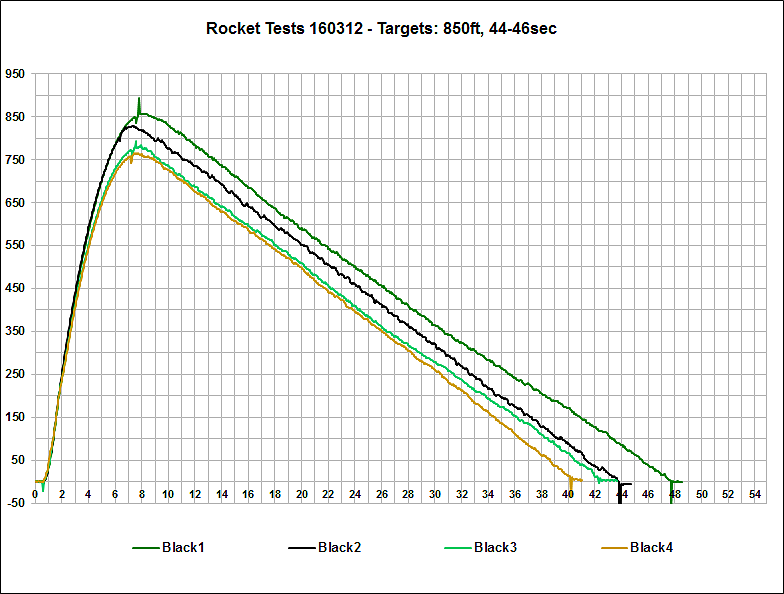

Altimeter Data Black Rocket

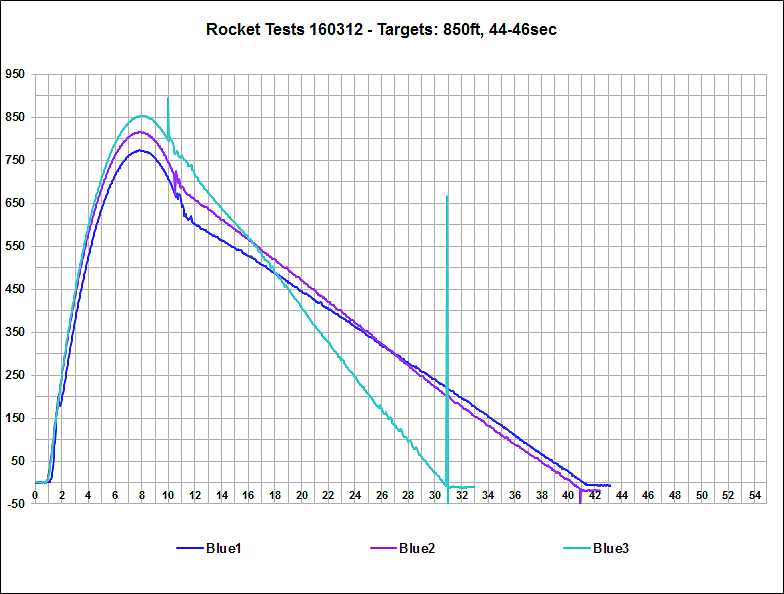

Altimeter Data Blue/Gold Rocket

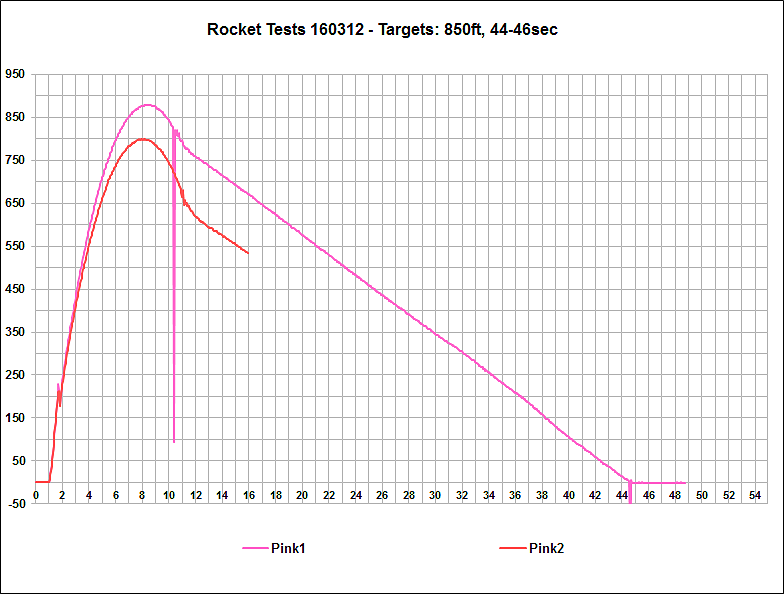

Altimeter Data Pink Rocket
