Moon Farside Explorer Post 1010
Lockheed Martin Exploring Program
Launch - August 17, 2013
LADEE Spacecraft

Project Home

On Saturday, August 17, one member of our project traveled to the Maryland launch site to try out some experiments with two parachutes. The weather was great. We had prepared the rockets the week before the launch.

We completed two launches (one for each rocket) during a 2 hour launch window. We recovered all the rockets, but had issues with the dual chute deployments.

NARHAMS conducted a special multiple rocket launch - see the video.


  • First flight of the rear deployment Big Daddy rocket.
  • Try two chutes one on cargo and one on booster with an old rocket.
Gold Rocket  Yellow Rocket


  • The gold rocket (rear deployment) did not deploy smoothly, and it came down too fast. We definitely need bigger chutes (and bigger deployment tubes).
  • The yellow rocket shock cord broke free of the booster. The shock cord needed to be much longer (3-4ft). The descent rate is not representative of the complete rocket coming down with two chutes.
  • The E20 motors were not powerful enough to reach the 825ft. We need to get the weight down around 350g, or get more powerful motors.
  • The altimeter for the gold rocket failed to record the flight. We added it to the yellow rocket and found it does work. The conclusion is that the air holes on the gold rocket were too small or blocked.


Rocket Engine Rail Cargo Recovery Weight Results Comments
Gold rocket
E20-7W 7ft 0d 2 eggs,
altimeter 2
2-12" Round 400g ~700ft, 34ec video, altimeter failed, deployment unsure, one chute may have tangled
Yellow rocket E20-7W 7ft 0d 2 eggs,
altimeter 1
altimeter 2
2-12" Round 414g 651ft, 31sec video, straight flight, good data for both altimeters, deployment broke connection to launch lug

Altimeter Data (Excel format)

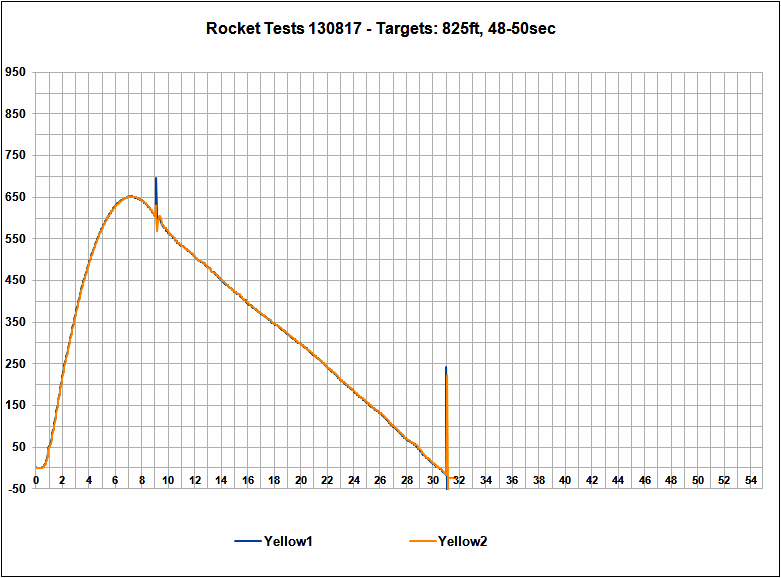

Altimeter Data Chart


  Our small team                                                                         Loading the rocket
  Team     Loading
