We are planning to use 24mm motors in the E and F class.  To get to the 800ft level we will use AeroTech re-loadable and single use motors.  We might use the longer delays to go past apogee if we can deploy our chutes using a mechanical means just before apogee.  If the rocket is over 390g (including motor) we will need an F motor.

Possible Motors

Motor	Type	Loaded Weight	Total Impulse *	Burn Time *	Rocket Weight   for 750ft	Cost	Comment
E18-4/7W	Reload	57	36.5	2.1	300-340g	$6	Only for light weight rockets
E20-4/7W	Single Use	49	35.0	1.6	300-360g	$8	.
E28-4/7T	Reload	55	39.7	1.2	320-380g	$6
E30-4/7T	Single Use	47	34.5	1.2	320-400g	$7	Best buy
F24-4/7W	Reload	62	47.3	2.1	400-460g	$7	May need to add weight
F39-9(6)T	Reload	59	49.7	1.3	420-480g	$7	May have too long of a delay
F32-4/6T	Single Use	64	56.9	1.7	460-520g	$10	Most expensive

* According to ThrustCurve.org

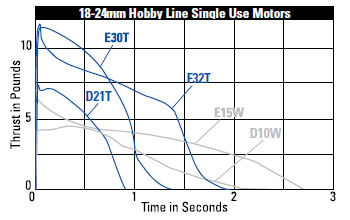

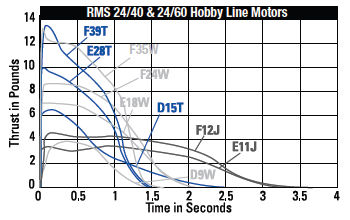

Here are the thrust charts from AeroTech.

Assembling an AeroTech reloadable is something we need to learn. You need to follow the instructions closely. Making one error in the assembly will destroy your rocket. One place where we differ is at the end.  We don't use the red cap to hold the igniter. We use either a rubber band or masking tape.

Here is a YouTube demonstration of assembling a G motor.
