Landing  Explorer Post 1010
Lockheed Martin Exploring Program
Launch - October 20, 2012
Rover

Seven members from all three teams and several adults traveled to the National Pike Park launch site on Saturday, October 20. It was a beautiful day, but windy around 10mph. The cargo unit of the second launch landed in the woods. We couldn't find it, but came back a few weeks later and found the cargo unit.

Objectives

  • Give the new members a launch experience.
  • Try some BT80s to see if the egg fits sideways.
  • Try a booster recovery separate from the cargo.
  • Try a streamer booster recovery.

Lessons

  • We have good recovery with separating the cargo unit from the booster.
  • The BT80s seemed to carry the eggs sideways. Start building.
  • We need to be more careful when the wind blows towards the trees.
  • We need to have team members out near the landing area to improve our recovery percentage.
  • When looking for a rocket during deer hunting season, we should wear a orange vest.

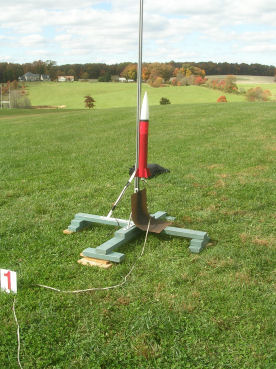

Red Rocket

Launches

Rocket Engine Rail Cargo Cargo
Recovery
Booster Recovery Weight Results Comments
Silver test 1
video
E30-7 3d 1 egg,
altimeter
15" Round 6x60" Streamer 383g
178g
768ft, 44sec Flew into wind, everything recovered
Red test 1
video
E30-4 6d 1 egg,
altimeter
15" Round 12" Round 347g
~150g
847ft, 65sec Straight, booster in tree recovered, cargo recovered 4 weeks later, egg broken and rotten

Altimeter Data (Excel format)

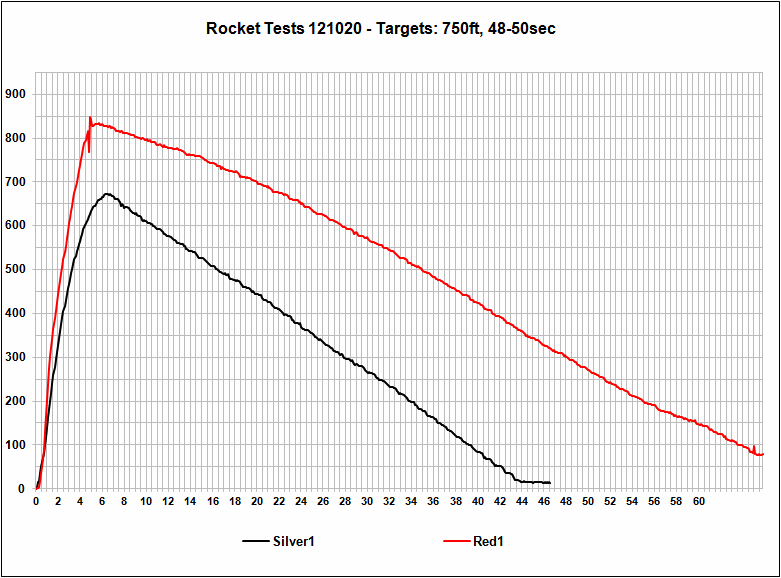

Altimeter Data Chart

   Learning                                                                               Loading
 Learning  Loading
   Connecting wires                                                                 Team
Connecting wires  Team
