Explorer Post 1010
Lockheed Martin Exploring Program
Launch - March 20, 2010

Thirteen members traveled to the NOVAAR launch site at Great Meadow, VA on Saturday, March 20.  This was our second attempt to qualify for TARC 2010.  It was sunny, temperature around 70 F.  Wind was variable from calm to about 10mph out of the south west.  We used both launch rails and had several NAR members observe and time the launches. We conducted 12 launches in four hours.

We had some good results but not great.  The biggest issue was the loss of team 8296's blue rocket booster due to a bad single use F32-6T motor.  They tried a qualification shot with a backup booster and came within 1.5 seconds of having a good score. The best result was the qualification score of 32 for team 8188 and their orange rocket.  If we can acquire more motors in time, we will be back out there on Saturday, March 27.

Objectives

  • Each team was launching one test flight and then one or two qualification flights.
  • All the streamers had been ironed with starch.
  • Teams 8186 and 8188 assembled their F24-4W motors on Wednesday, March 17.

Lessons

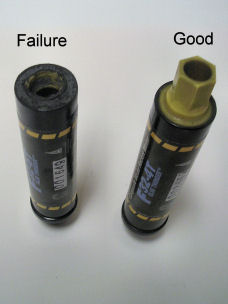

  • For team 8296, the F32-6T was a disappointment with the failed ejection.  It may still work but needs a test.
  • For team 8189, the F30-7T was a disappointment with low power.  The had to switch back to an F24-4W.
  • We did not get much improvement due to thermals.
  • We need to think about 3 feet per gram, not 2 feet.
  • You need to use the same scale for every weighing, and do it several times to be sure.
  • If you trip the altimeter, you should stop the launch and download the data from the previous launches or you might lose it.

Suggested Tasks

  • Team 8186:  You may take one more qualifying launch, but it might be best to sit with your current score of 17.

  • Team 8188:  You are done with a best score of 32.  Let's hope this is good enough this year.

  • Team 8189:  You have two more shots at qualifying.  It looks like you need an F24-4W with about 460g.  Try more pleats in your streamers.

  • Team 8296:  You need to rebuild cargo and booster units.  You may need a third streamer.  You also need to protect your streamers better. You have one more shot.

Launches

Team Rocket Engine Cargo Cargo Recovery Booster Recovery Weight Results Comments
8186 White
test 1
F24-4W egg,
altimeter G
2-7x70  streamers sticks, pleated 10' Xchute 421g 901ft, 44sec
(video)
Nice flight, streamers deployed nice
8186 White
test 2
F24-4W egg,
altimeter G
2-7x70  streamers sticks, pleated 10' Xchute 453g 793ft, 38.7sec
(video)
Nice flight
Qualification Score
38.9
8188 Orange
test 1
F24-4W egg,
altimeter H
3-7x70  streamers sticks, pleated, yoke 12" chute w/hole 461g 810ft, 36sec
(video)
Wind cocking, streamers and yoke deployed nice
8188 Orange
test 2
F24-4W egg,
altimeter H
3-7x70  streamers sticks, pleated, yoke 12" chute w/hole 450g 857ft, 40.4sec
(video)
Nice flight
Qualification Score
32
8188 Orange
test 2
F24-4W egg,
altimeter H
3-7x70  streamers sticks, pleated, yoke 12" chute w/hole 455g 801ft, 35.5sec
(video)
Nice flight
Qualification Score 46.5
8189 Silver
test 1
E30-4T egg,
altimeter C
2-7x70  streamers with sticks, pleated 6x60 streamer 378g 744ft, 30sec
(video)
Nice flight, but too low
8189 Silver
test 2
E30-7T egg,
altimeter C
2-7x70  streamers sticks, pleated 6x60 streamer 378g 659ft, 28sec
(video)
Wiggle in flight, way too low
8189 Silver
test 3
F24-4W egg,
altimeter C
2-7x70  streamers with sticks, pleated 6x60 streamer 435g 925ft, 51sec
(video)
Nice flight, way too high
8296 Blue
test 1
F32-4T egg,
altimeter F
2-7x70  streamers with sticks, pleated Connected with 4x40 streamer 610g 789ft, 29sec
(video)
Nice flight, streamers deployed nice
8296 Blue
test 2
F32-6T egg, altimeter F 2-7x70  streamers with sticks, pleated Connected with 4x40 streamer 609g 20ft, 4sec
(video)
Ejection happened at ignition, bad news
8296 Black
test 1
F32-4T egg,
altimeter F
2-7x70  streamers with sticks, pleated, threads Broke away 589g 872ft, 38sec
(video)
Nice flight, streamers deployed nice
8296 Black
test 2
F32-4T egg,
altimeter F
2-7x70  streamers with sticks, pleated, threads 6x60 streamer 608g 823ft, 33.6sec
(video)
Nice flight, booster tangled
Disqualification - time

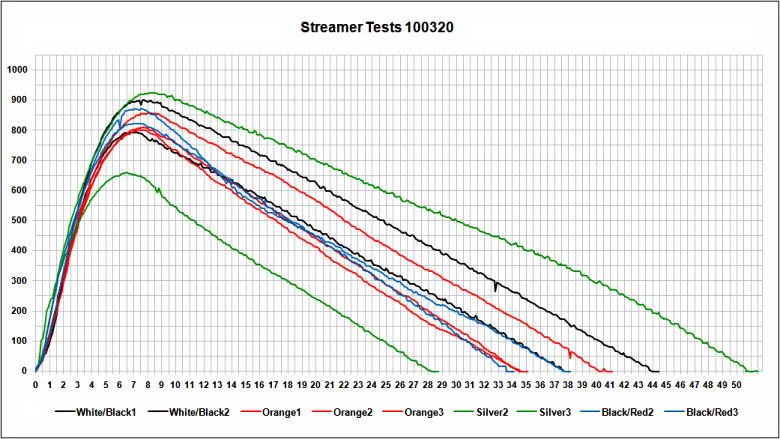

Altimeter Data (Excel format)

Pictures

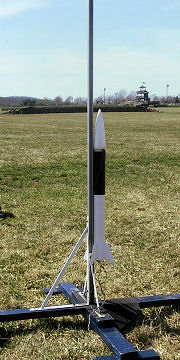

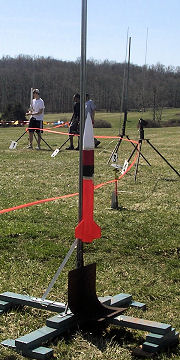

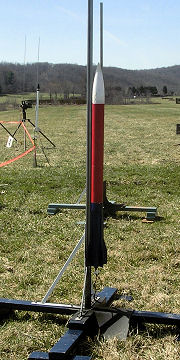

  Team 8186                               Team 8188                               Team 8189                               Team 8296(bacckup)

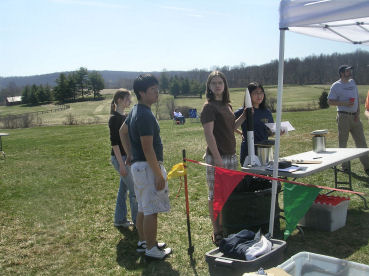

Checking in
Completing form

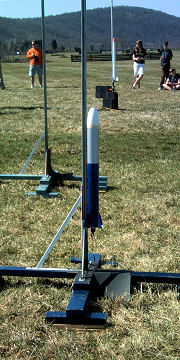

My rocket
Team 8186 loading up

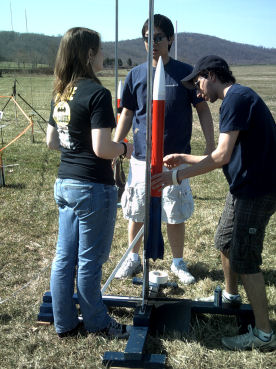

 Team 8296
  loading up

Team 8296 ready to launch (or something)
