 We traveled to
the NARHAMS Maryland launch site on Saturday with a big team of 11
members. It was a nice day with wind around 5mph (gusts to 10mph).
We had five nice launches. We verified some assertions but raised some
issues.
Objectives
- Flight test Basic 2 with F24-4W.
- Flight test Special 1 with F52-5T.
- Flight test Special 2 booster with
F25-4W
- Test with real eggs in all flights.
- Test with altimeters in Basic 1, and
Special 1.
- Think about test with altimeters in
Basic 2, and Special 2.
- Think about timed ejection
charge in Basic 1 or Special 1.
Lessons
- All future rockets will use the
launch rail.
- We may need an F39 for the Basic
model.
- Ejection charges in reloadable must
have a sleeve.
- The fins on the Basic model need
improvement. They need to be stronger and not warped. We will go with 3/32 thickness, instead of 1/16
when making Basic 3.
- The cargo unit on the Special needs
to be tighter in the booster.
- We need to work on the ejection
charge and determine why it failed. We may need the heavier
9volt battery.
Launches (altimeter
data)
|
Rocket |
Engine |
Cargo |
Chute |
Weight |
Results |
Comments |

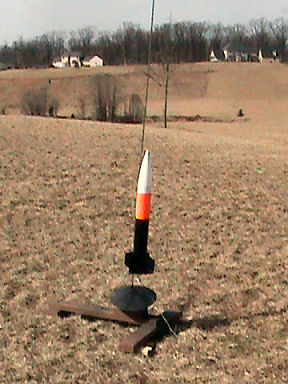

Basic 1
(video) |
F24-4W |
egg
altimeter D |
18" X and
4x60 streamer |
488g |
703ft, 36sec |
Launch rod, nice flight, but fin was
again damaged on landing. |

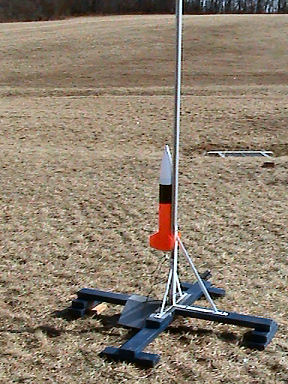

Basic 2
(video) |
E18-4W |
egg
altimeter D |
18" X and
4x60 streamer |
456g |
525ft, 41sec |
Launch rail, warped fins gave it a
spin, underpowered motor, strange (premature) ejection charge, but
nice recovery. |

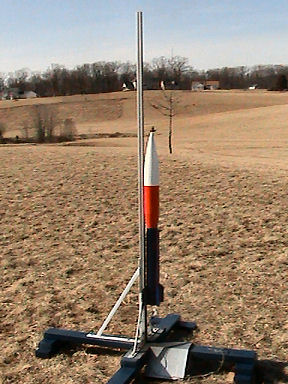

Special 1
(video) |
F52-5T |
egg
altimeter F |
24" X and
14" |
776g |
813ft, 35sec |
Launch rail, the cargo unit wobbled at
take off, the small chute was on the cargo unit, large chute was
on the booster. |

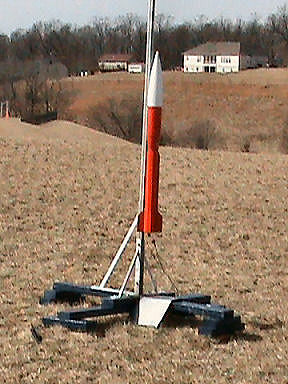

Special 2
(video) |
F25-4W |
egg
altimeter F |
24" X and
14" |
725g |
913ft, 51sec |
Launch rail, special 1 cargo unit,
nice flight, may have ejected before apogee. |
Special 1
(video) |
F52-5T |
egg, timer
altimeter F |
24" X and
14" |
786g |
851ft, 40sec |
Launch rail, timer 4.5sec, ejection
charge didn't fire. |
