Explorer Post 1010
Lockheed Martin Exploring Program
Launch January 24, 2009

We traveled to our Maryland launch site on Saturday.  When we arrived, the snow was coming down hard, but it stopped by the time we were ready to launch. The weather cleared and it wasn't too cold.  The wind picked up for the last two launches. With two launch towers, we were able to get four launches completed within two hours. Here is a video around the launch site.

What we learned

  • The launch rail worked great.  We should patent the design.
  • Our special design flew very straight, with little angling.
  • The basic thin-wall rocket required more angling of the launch rod, and it still went into the wind.
  • Both rockets were heavier then planned. We are going to need bigger motors. The special design will need F50s and the basic thin-wall rocket will need F24s.
  • We used separate recovery chutes/streamers on the booster and cargo units for both rockets.
  • The streamer worked OK, but it got tangled once. We need to develop a loading procedure.
  • We got some nice altimeter data - looked very smooth.
  • We did not do a timed ejection charge, but we are ready to try in either or both designs.

Launches

Rocket Engine Cargo Chute Weight Results Comments
Basic
(video)
E18-4 egg 18" X and
4x60 streamer
432g about 600ft
34sec
Nice flight, streamer looked OK, but a weak fin broke on landing.
Invader
(video)
E18-4 egg,
altimeter F
18" X and
4x60 streamer
416g 571ft, 35sec

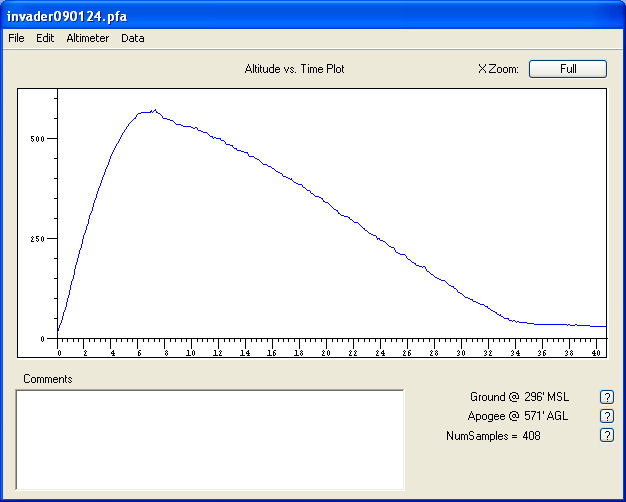

(altimeter data)
Replaced the booster with the Invader and used a light weight cargo unit. Nice flight, streamer was tangled, cargo came down close to the trees
Special
(video)
F20-4 egg weight 24" X and
14"
654g about 600ft
32sec
Straight flight, nice landings.
Special
(video)
F20-4 egg weight,
altimeter C
24" X and
14"
720g 552ft, 34sec

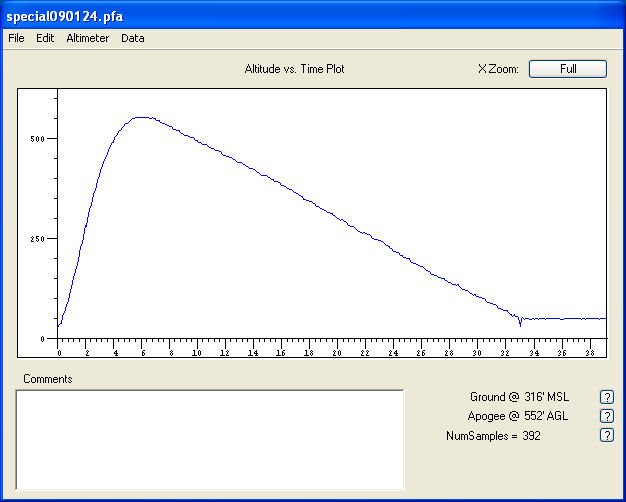

(altimeter data)
Very straight flight, cargo came down close to the trees.

Data

Pictures

Inside prep
More inside prep
 Loading
Ready
