Launch January 27, 2007


Another Saturday and another launch.  We traveled to the launch site at Old National Pike Park for some testing and experimentation.  The wind was well under 10 mi/hr and the temperature was around 45 degrees. The NARHAM launch site operators showed up and gave us some help in our launch techniques.

Objectives:

  • Develop experience with the Aerotech reloadable engines.
  • Get some altitude readings with the altimeters.
  • Use real eggs to check the padding techniques and impact issues.
  • Test the aerodynamics of the long air brake rocket.
  • Drive the Fat Boy design to 1000 feet and check out the wobble.

Lessons:

  • We were disappointed with the rear ejection Big Daddy.  The chute did not deploy and we experienced a serious lawn dart.  We lost the rocket and the altimeter, but we got a little data.
  • The Aerotech composite motors are more powerful than the Estes black powder and produce better flights.  We were all over 800, 900, even 1000 feet high. There is less wind cocking with the Aerotech motors.
  • We have to learn to clean out the reloadable hardware immediately after launch.
  • We had no problems with shock cords or parachutes burning.  The three foot Kevlar cords work great and we are protecting the chutes with insulation and Nomex chute protectors.
  • We had some problems getting the igniters set and attached correctly -- both Aerotech and Estes.  We need to be more careful and inspect closely before we leave the launch tower.
  • The new stainless steel launch rod worked fine.
  • We left some important items back at Lockheed Martin. We may want to use a check list before we leave the building.
  • After losing one altimeter, we couldn't find the other altimeter, so we used the altimeter from 3 years ago.  It didn't recorded altitude on the two flights we tried. We need more altimeters.
  • We need to get back to weighting our rockets.




Launches

Flight Load Results Order Comment
Big Daddy
Flight 1 (Video)
E18-7, 14" Chute
Wooden Egg
Altimeter #1
15 sec
900 ft
Altimeter Data
1 Serious lawn dart, the chute failed to deploy, it hit the ground at 100 mi/hr, the altimeter was damaged, but we got some interesting data.
Fat Boy Design
Flight 1 (Video)
E18-7, 18" Chute
Real Egg
Old Altimeter
65 sec
about 1000 ft
3 Nice flight, very high, landed on grass, egg OK, altimeter failed to record, maybe a little wobble in the video -- can't tell.
Executioner
Flight 1 (Video)
E18-7, 18" X Chute
Real Egg
Simulated Altimeter
48 sec
about 800 ft
2 Nice flight, the X chute worked nice, landed in low bush, egg OK, may have been good qualification launch.
Executioner
Flight 2 (Video)
E9-6, 18" X Chute
Real Egg
Old Altimeter
34 sec
about 600 ft
6 Nice flight, no burns in chute or shock cord, landed on grass, egg OK, altimeter failed to record, good view of chute, egg, and rocket landing
Air Brake Rocket
Flight 1 (Video)
E9-4, 14" Chute
Wood Egg
Simulated Altimeter
10" Air Brake Segment
18 sec,
about 300 ft
4 Wind cocking, but aerodynamics OK.
Air Brake Rocket
Flight 2 (Video)
E18-7, 14" Chute
Wooden Egg
Simulated Altimeter
10" Air Brake Segment
18 sec,
about 800 ft
5 Straighter flight, chute failed to deploy.

Pictures

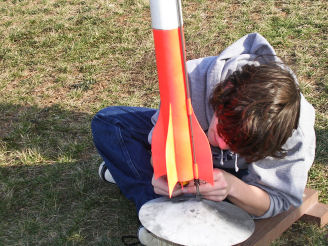

Getting ready

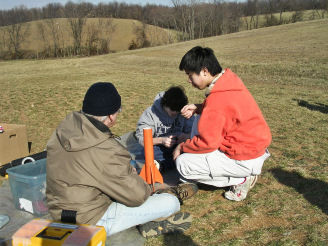

Next on the launch rod

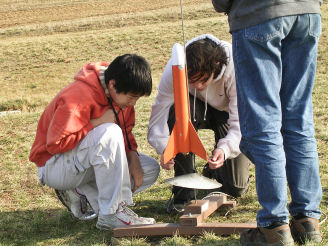

On the launch rod

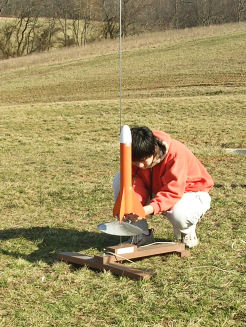

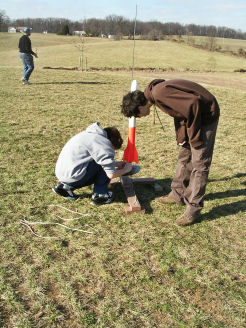

Attaching the igniter clips

Recording a flight
Waiting for a launch
