We had a very tough day. While the sky was clear and the temperature about
45 degrees, the wind was again over 15 mph. We planned to do 5 test
launches and no qualification launches because of the wind. We set the
launch rod at a 20 degree angle with the wind. We used the plumb line
to estimate the angle and direction of the launch rod.
We only got off two launches, before we decided to quit. And those two
were not very successful. One went horizontal and landed in a tree.
The other one opened up and we lost the altimeter. We spend 45 minutes
looking for it. It may have gone into the lake.
We also had problems with the altimeters.
They would trigger for no apparent reason. The problems were with the
altimeters that we had flown before, so we tried the third unused altimeter.
That is the one we lost. We think the problems were with the original
batteries.
We only had 5 team members, but they work together and operations went
smoothly. We started with good data sheets, but didn't get much data
from the flights.
Lessons
- We need to screw the nose cone to the
cargo container.
- We need new batteries for the altimeters.
- There are doubts about the stability of
the BT70 design.
- The weights of the rockets are creeping
up.
-
Analysis of the BT80-1 video showed an ejection delay of about 10 seconds
for the E9-8 engine.
- We hope April 1 is a calm day.
Our TARC Rockets
Rocket |
Engine/
Weight |
Cargo/
Chutes |
Recovery |
Results |
BT70-3
Launch 1
Video
Score: disqualified |
E9-8
269g |
Egg, Altimeter,
Chute-12in |
Shock cord pulled out of rocket base, landed NE about 600ft, in a tree,
egg OK |
Height: cork screw NE
Time: 40sec average timers
Altimeter: lost data |
BT80-1
Launch 1
Video
Score: disqualified |
E9-8
281g |
Egg, Altimeter,
Chute1-14in w/spill,
Chute2-18in engine
Chute protector |
Chutes opened, landed S about 900ft, nose cone opened
up, dropped altimeter, no altimeter, egg, or nose cone recovered |
Height: about 700
Time: 63sec average timers
Altimeter: lost altimeter
|
BT80-2
Launch 1 |
E9-8
307g |
Egg, Altimeter,
Chute-18in,
Chute protector |
|
|
BT70-1
Launch 1 |
E9-8
287g |
Egg, Altimeter,
Chute-12in
Streamer for engine |
|
BT70-2
Launch 2 |
E9-8
278g |
Egg, Altimeter,
Chute-14in w/spill
Streamer for engine |
|
|
Pictures

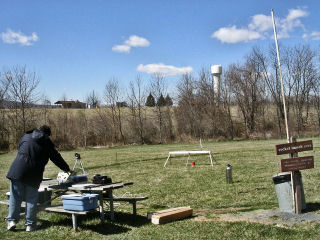

Launch Site
 |

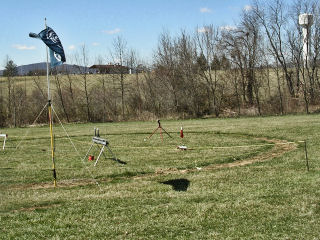

BT70-3 Ready
 |
Getting ready the Wednesday before
 |
Checking the simulation
 |
|
