Lockheed Martin Exploring Program
Team America Rocketry Challenge
Launch February 18, 2006


It was a very cold day with wind gusts above 20 mph. We launched 4 TARC rockets, 2 a second time.  We were a little disappointed with the altitudes and glad we didn't try to qualify. We had 3 disqualifications -- one broken egg, and two lost parachutes.  The strong wind took 150 feet off our height and 10 seconds off the decent.  We had some successes, but learned several good lessons.
  • We recovered all the altimeters and rocket parts.
  • We downloaded all six altimeter data sets.
  • No one froze to death.
  • Operations went smoothly.

Lessons

  • We didn't fill out the data sheets after the flights.
  • We need to weigh each rocket before launch.
  • We need to try more E9-8s.
  • We need to tape the nose cone and cargo section together.

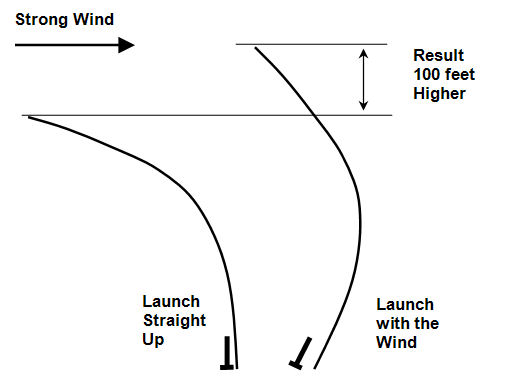

  • We need to set the launch rod angle with the wind, not into the wind (see diagram below).
  • We need to do better on collecting timing data from timers -- no one wrote down the stop watch times.
  • The BT80s used altimeter #1 and the BT70s used altimeter #2.
  • We still need a brighter computer for downloading altimeter data.

Our TARC Rockets

Rocket Engine/
Weight
Cargo/
Chutes
Recovery Results
BT80-1
Launch 1
Video
Score:
disqualified
E9-6
278g
Egg, Altimeter,
Chute1-14in w/spill,
Chute2-18in engine
Chute protector
Chutes opened, landed S about 900ft, lost engine chute, nose cone opened up and dropped altimeter Height: 656ft altimeter
Time: 17sec altimeter
Altimeter Data
BT70-1
Launch 1
Video

Score: disqualified
E9-4
251g
Egg, Altimeter,
Chute-12in
Chute broke off and lost, landed S about 500ft Height: 740ft altimeter
Time: 26sec altimeter
Altimeter Data
BT80-2
Launch 1
Video

Score: 210
E9-6
297g
Egg, Altimeter,
Chute-18in,
Chute protector
Chute opened, landed SE about 400ft Height: 606ft altimeter
Time: 29sec altimeter
Altimeter Data
BT70-2
Launch 1
Video

Score: 292
E9-4
254g
Egg, Altimeter,
Chute-14in w/spill
Streamer for engine
Chute opened, landed W about 400ft, altimeter may not have gotten clear air pressure Height: 520ft altimeter
Time: 33sec altimeter
Altimeter Data
BT80-2
Launch 2
Video
Score: 147
E9-4
297g?
Egg, Altimeter,
Chute-18in,
Chute protector
Chute opened, landed S about 500ft Height: 660ft altimeter
Time: 38sec altimeter
 Altimeter Data
BT80-1
Launch 2
Video
Score:
disqualified
E9-6
284g
Egg, Altimeter,
Chute1-14in w/s,
Chute2-18in engine
Chute protector
Chutes opened, landed SE about 400ft, in a tree, broke egg when dropped from tree Height: 677ft altimeter
Time: 34sec altimeter
 Altimeter Data

Why Our Rockets Didn't Go Higher

Pictures

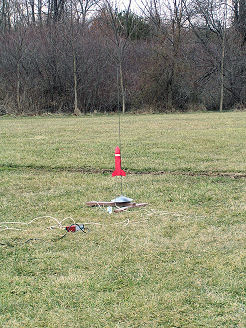

BT80-1 Ready

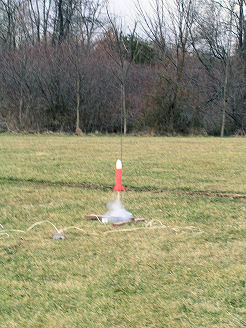

BT80-2 Fire

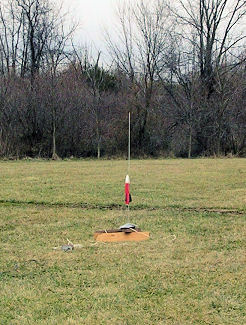

BT70-2 Ready

Updated: March 6, 2006
