Lockheed Martin Exploring Program
Team America Rocketry Challenge
Launch January 21, 2006


We had a great day to conduct our second test launch session..  The temperature was around 55 degrees and there was almost no wind.  We launched five TARC rockets, and three of them a second time.  We had some promising success and may be ready for a qualification launch in February.
  • We launched eggs eight times and only lost one egg.
  • We collected much more data then we did in December.
  • We downloaded four altimeter data sets.
  • The smaller parachutes seemed to help in getting down faster.
  • We have some good designs.
  • The launch tower, timer, data recording, parachute packing, and cargo loading operations went smoothly.

Lessons

  • We need to change the design on the BT70 shock cords -- elastic segments, pressure relief holes, or longer cords.
  • We need to check that the engine is tight in the engine tubes.
  • We need to make sure there is no possible vertical shifting of the eggs.
  • We need to weigh each rocket before launch.
  • Chute protectors seemed to work.
  • We need larger fins.

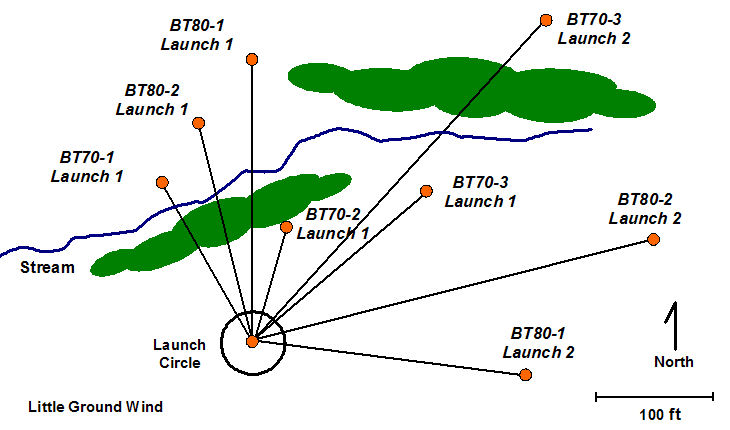

Our TARC Rockets

Rocket Engine/
Weight
Cargo/
Chutes
Recovery Simulation Results
BT80-1
Launch 1
Video
Score: 23
E9-4
268g
Egg, Altimeter, Chute1-14inw/s,
Chute2-12in
Chute protector
Chutes opened, Landed N about 300ft With E9-4
Height: 752ft
Time: 51sec
Range: 333ft
Height: 818ft altimeter
Time: 50sec altimeter
         50sec watch
Altimeter Data
BT70-1
Launch 1
Video
D12-3
271g
Egg, Weight for altimeter/engine, Chute-18in Ejection pulled shock cord out of bulkhead, Burn marks on chute, Landed NW about 200ft With D12-3
Height: 399ft
Time: 23sec
Range: 271ft
Time: ??sec watch
BT80-2
Launch 1
Video
E9-4
284g
Egg, Altimeter, Chute-18in,
Chute protector
Chute opened, Landed NW about 250ft With E9-4
Height: 714ft
Time: 47sec
Range: 712ft
Time: 50sec watch
BT70-3
Launch 1
Video
D12-3
254g
Egg, Weight for altimeter/engine, Chute-12in Burn marks on chute, Landed NE about 150ft With D12-3
Height: 391t
Time: 22sec
Range: 126ft
Time: 24sec watch
BT70-2
Launch 1
Video
D12-3
256g
Egg, Weight for altimeter/engine, Chute-14w/s Ejection pulled cord out of engine ring, Burn marks on chute, Landed N about 100ft With D12-3
Height: 393ft
Time: 19sec
Range: 85ft
Time: 30sec watch
BT80-2
Launch 2
Video
Score: 30
E9-6
284g?
Egg, Altimeter, Chute-18in,
Chute protector
Chute opened Landed NE about 350ft With E9-4
Height: 778ft
Time: 39.5sec
Range: 425ft
Height: 783ft altimeter
Time: 58sec altimeter
         53sec watch
Altimeter Data
BT80-1
Launch 2
Video
Score: 3
E9-6
268g?
Egg, Altimeter, Chute1-14inw/s,
Chute2-12in
Chute protector
Chute1 opened, Chute2 lost,
Egg broke, Landed E about 250ft
With E9-4
Height: 778ft
Time: 39.5sec
Range: 425ft
Height: 798ft altimeter
Time: 46sec altimeter
         46sec watch
Altimeter Data
BT70-3
Launch 1
Video
E9-4
254g?
Egg, Altimeter
Chute-12in
Went horizontal, Landed NE about 500ft With E9-4
Height: 816ft
Time: 41sec
Range: 253ft
Height: 608ft altimeter
Time: 33sec altimeter

Altimeter Data

Pictures

BT70-1 Prep
BT80-1 Prep
BT80-1 Loading
Watching and Waiting
BT70-1 Ready

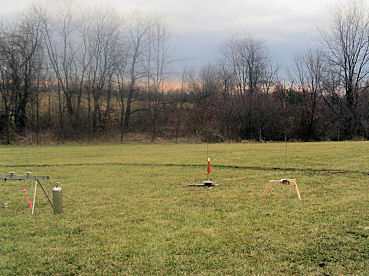

BT70-3 Last Launch

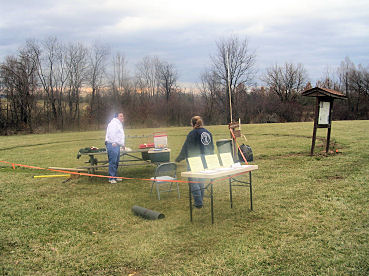

Range Safety Officers
