Lockheed Martin Exploring Program
Team America Rocketry Challenge
Launch December 10, 2005


On a cold afternoon in December, we conducted our first launch.  We launched 10 rockets, our egg carriers twice.  We gained a lot of experience that we will use in the January launch.
  • Launch operations went smoothly.
  • We used our launch rod from last year for the egg carriers. We tried to compensate for the wind by tilting the rod.
  • One of our egg carriers had separate recovery chutes for the engine and egg modules, and it worked.
  • We launched 4 eggs with none broken in recovery.
  • We flew two altimeters with the eggs and downloaded data for the second launch to a computer.
  • We tested a streamer, but it broke in the cold.

Lessons

  • We need to do better at keeping launch records (weight, duration, height, distance, direction).
  • We need to make check lists for launch process.
  • We could not use the computer in the bright snow on just batteries.  We needed to use the computer in the car on the car battery.
  • Some of the parachutes and the streamer were stiff in the cold and didn't work.  We need to do some experiments with parachutes in a freezer.
  • We can't have fins on the cargo container.  The range safety officer called them unsafe.
  • When video recording, we need to start with a circular pan of the site to record landmarks for subsequent video analysis.
  • Drifting from the high altitudes caused us to come too close to the trees.  The wind at ground level was almost still, but we need a way to understand the high altitude winds. (Try using a tethered balloon at 400 ft.)
  • The igniter dropped out of a rocket as it was igniting.  We need to understand the igniter plugs better. (Check with the Estes web site to get a mapping of plug color to engine size.)

Our Modified Fatboys

Rocket Engine/Weight Launch Recovery Results
Fatboy 1, Launch 1
(James, Anthony)
Video
D12-3 One egg, no altimeter Cargo parachute opened, but sustainer did not
E about 200 ft
Height: About 400ft
Time: 38sec stopwatch
Fatboy 2, Launch 1
(AJ, Alan)
Video
D12-3
198g without egg
One egg, no altimeter Parachute opened
NW about 200ft
Height: About 400ft
Time: 48sec stopwatch
Fatboy 1, Launch 2
(James, Anthony)
Video
E9-4 One egg, altimeter Both parachutes opened
N about 300ft
Height: 768ft altimeter
Time: 69sec stopwatch
Fatboy 2, Launch 2
(AJ, Alan)
Video
D12-3 One egg, altimeter
Igniter dropped out
Parachute opened
N about 250ft
Height: 420ft altimeter
Time: 37sec altimeter
         40sec stopwatch
Altimeter Data



Our Modified Alphas - Video

Rocket Engine/Weight Launch Recovery Results
Alpha 1
(Drew Hoelscher)
A8-3 No altimeter
Igniter dropped out
nice flight
Parachute opened Height: About 200ft
Time:
Alpha 2 A8-3 No altimeter Parachute opened Height: About 200ft
Time:
Alpha 3 A8-3 No altimeter Parachute didn't open Height: About 200ft
Time:
Alpha 4 A8-3 No altimeter Streamer and parachute didn't work Height: About 200ft
Time:
Alpha 5 A8-3 No altimeter
nice flight
Parachute opened Height: About 200ft
Time:
Alpha 6 (on #2) B or C? No altimeter Parachute opened Height: About 300ft
Time:
Alpha 7 A8-3 No altimeter Parachute didn't open

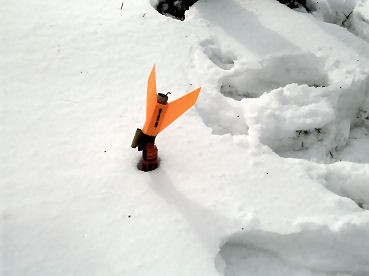

nosed into snow
Height: About 200ft
Time:

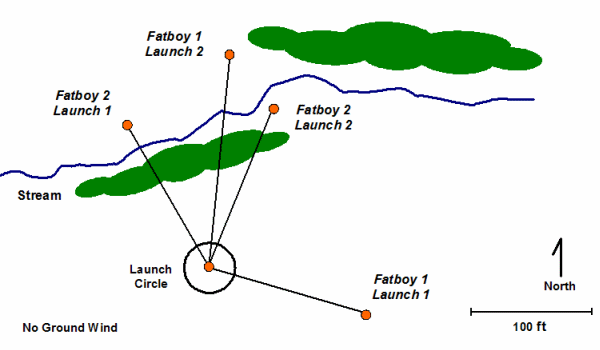

Results

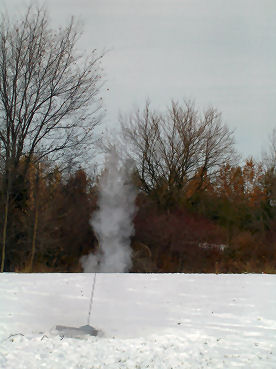

ç Gone


Returned ê

More Pictures

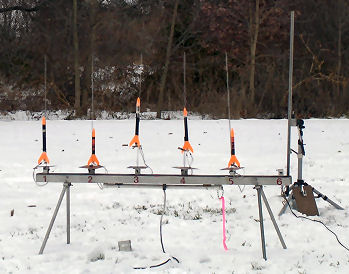

Getting ready

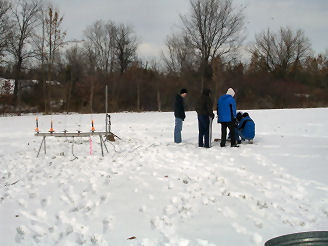

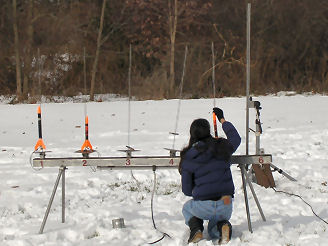

Loading

Standing and working



Updated: December 15, 2005
